BF Type Flotation Machine

Inquire Now

Description:

Application range:
selection of non-ferrous metals, ferrous metals and non-metallic minerals

Product advantages

1. Comprehensive absorption of the respective characteristics of existing flotation machines in my country 2. Horizontal configuration, self-return of medium ore foam, self-priming air 3. Low power consumption, large air suction volume, low impeller linear speed 4. Product production specification range 1.2 m3-24m3 5. Product effective volume range 1.2m3-24m3



Performance characteristics



1. The impeller is composed of a closed double truncated cone body, which can generate strong circulation of the slurry;

2. Large inhalation volume and low power consumption;

3. Each tank has three functions of air suction, slurry suction and flotation. It forms a self-contained flotation circuit without any auxiliary equipment. It is configured horizontally to facilitate process changes;

4. Reasonable slurry circulation can minimize the precipitation of coarse sand;

5. It is equipped with automatic slurry level control and electronic control devices, which are easy to adjust.



working principle

According to the different physical and chemical properties of the mineral surface, useful minerals are separated through stirring and automatic suction to obtain the required minerals.



Parts configuration

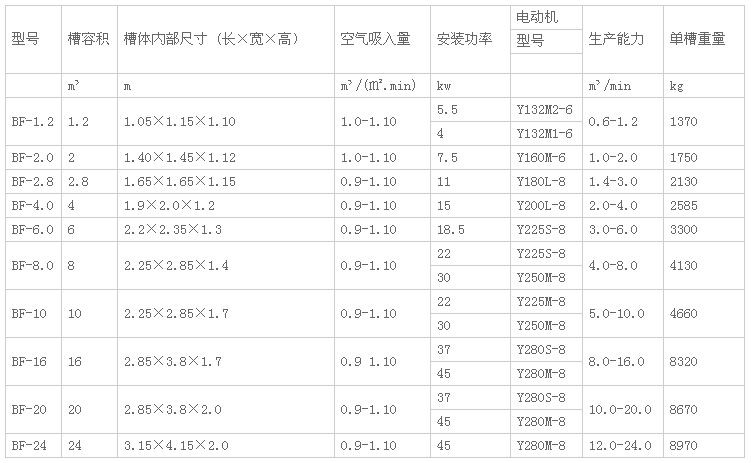

Technical Parameters
