CLF Type Coarse Particle Flotation Machine

Inquire Now

Description:

Application scope
Separation of non-ferrous, ferrous metals and ********

Product advantages

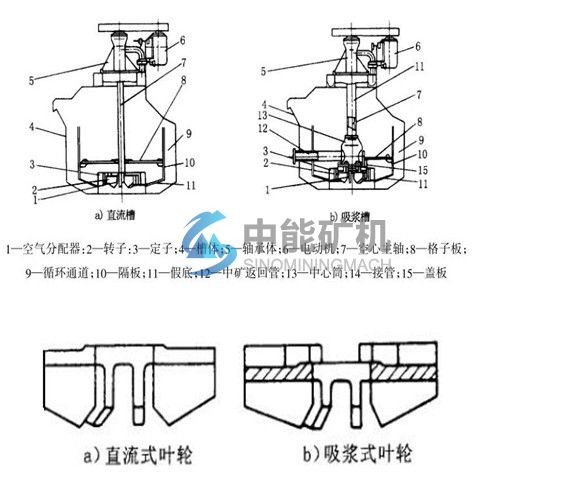

1. It is suitable for the separation of coarse particles and takes into account the separation of fine particles. It is a full-grain flotation. 2. It adopts a new impeller-stator system and is equipped with a forced circulation channel and a grid plate with a false bottom. Tank body 3. Product production specification range 2m3-40m3 4. Product effective volume range 2m3-40m3



Performance characteristics



CLF type coarse particle flotation machine 1. Novel impeller, stator system and new slurry circulation method - it can suspend coarse-grained minerals in the middle area of ​​the tank at a lower impeller peripheral speed.

2. Consider both coarse and fine particles of flotation minerals - coarse-grained minerals are mineralized smoothly in the middle of the tank, while the concentration of circulating slurry returning to the impeller is low and the size of the mineral particles is fine. This is not only beneficial to coarse-grained flotation, but also to fine-grained minerals. Particle flotation.

3. The rising slurry flow generated in the tank is stable - helping the mineralized bubbles with coarse-grained minerals attached to float up. Greatly reduce the shedding rate between coarse-grained minerals and bubbles.

4. Low power consumption and small wear - due to the low impeller peripheral speed and low concentration of circulating slurry returning to the impeller, the wear of the impeller and stator is greatly reduced and the power consumption is low.

5. Stable selection index - due to the large gap between the impeller and the stator, the aeration and air dispersion will not change much as the impeller and stator wear, which provides favorable conditions for stable selection index.

6. The grid plate creates a stable suspended layer of coarse particles - due to the special structure of the grid plate, the turbulence in the upper area of ​​the tank (flotation separation layer) is reduced, which is greatly beneficial to the flotation effect of coarse particles.

7. The aeration volume is large and the liquid level is stable, which is conducive to the floating of coarse particles.

8. The structure of the flotation machine is different from the suction tank and the direct flow tank. The flotation machine can be configured at the same level without the need for a foam pump to return to the middle mine.

8. It can handle coarse-grained minerals with a particle size of 1mm without sinking.

9. If the user needs, an automatic control system with slurry level and aeration volume can be configured, which is easy to operate and adjust.



working principle

According to the different physical and chemical properties of the mineral surface, useful minerals are separated through stirring and aeration to obtain the required minerals.



Parts configuration
