Application Scope
Medium and small enterprises that select non-ferrous, ferrous, precious metals and non-metallic minerals
Product advantages
1. It has the dual functions of self-priming pulp and self-priming 2. Large air suction volume, low energy consumption, high sorting efficiency, and long life of wearing parts 3. Product production specification range 1.1m3-42m3 4. Product effective volume range 1.1m3-42m3
Performance characteristics
1. Large inhalation volume and low energy consumption.
2. It has the ability to self-prime air and self-prime slurry. It is configured horizontally and does not require a foam pump.
3. The peripheral speed of the impeller is low, and the life of wearing parts is long. In particular, the life of the impeller and stator is more than twice as long as that of similar flotation machines.
4. The gap between the impeller and the stator is large. As the gap between the impeller and the stator increases, the air intake volume will be less affected.
5. The slurry in the tank performs double circulation up and down according to a fixed flow pattern, which is conducive to the suspension of coarse-grained minerals.
working principle
According to the different physical and chemical properties of the mineral surface, useful minerals are separated through stirring and automatic suction to obtain the required minerals.

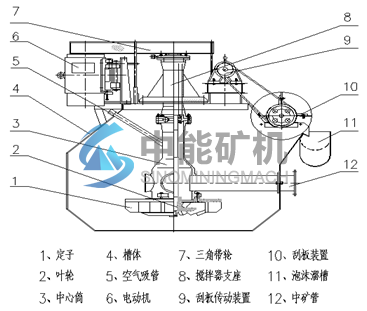

Parts configuration

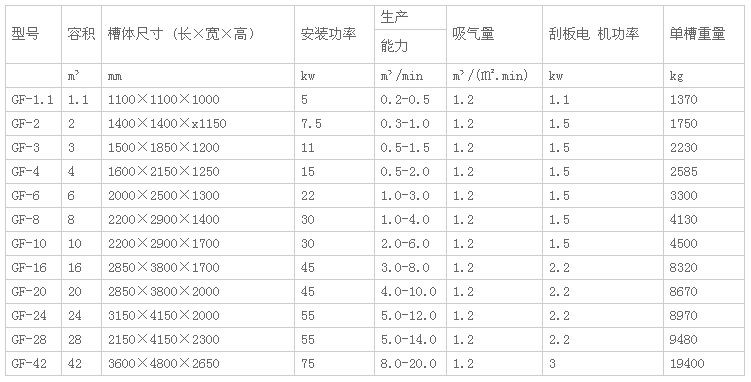

Technical Parameters
