• BS-K type flotation machine

BS-K Type Flotation Machine

Inquire Now

Description:

Application range
selection of nonferrous and ferrous metals

Product advantages

1. Absorb the advantages of foreign advanced flotation machines 2. Easy installation, low installed power, long life of wearing parts 3. Product production specification range 4m3-38m3 4. Product effective volume range 4m3-38m3



Performance characteristics



1. The main shaft is hung on the frame side. The bearing body has a light structure, easy installation and good verticality.

2. The impeller has a conical cross-section and the stator is radial, with small wear, long life and strong stirring power.

3. The "U" shaped tank body reduces the accumulation of minerals at the bottom of the tank, the main shaft component is lightweight in structure, and the stator is installed on the bottom of the tank for easy installation. The installed power is small and it saves 50% energy than Type A.

4. The bubbles are evenly dispersed, the air mass is good, the foam is stable, the mineral particles are suspended well, and the recovery rate is high.



working principle

According to the different physical and chemical properties of the mineral surface, useful minerals are separated through stirring and aeration to obtain the required minerals.

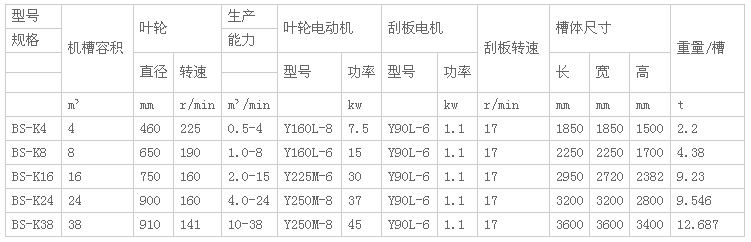

Technical Parameters
