Application Scope
In the carbon slurry process and cyanidation process, the carbon leaching tank needs to be equipped with other auxiliary equipment such as carbon isolation screen and carbon extraction pump.
Product advantages
1. The upper and lower impellers are steel plate rubber-coated type and connected with bolts. They have good balance, are easy to replace and have a long service life. 2. The main shaft is divided into upper and lower layers and is connected by positioning flange, which can reduce the lifting height. 3. Multi-point dispersed inflation , good air mixing performance 4. The effective volume range of the product is 6m3-342m3
Performance characteristics
The double-layer impeller has strong stirring power and is easy to disassemble and maintain.
working principle
Under the rotation of the double impeller, the liquid flow state in the tank causes turbulence and produces large and small circular motions, so that the slurry and chemicals in the entire tank are evenly mixed.
Parts configuration

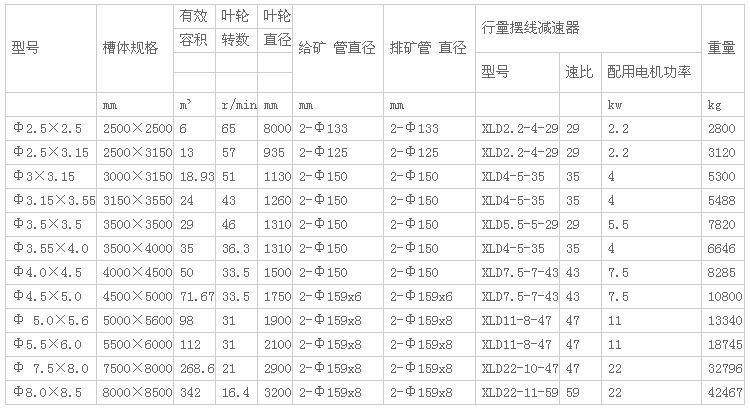

Technical Parameters
