High Concentration Mixing Tank

Inquire Now

Description:

Application scope
Mixing and stirring of slurry and flotation reagents with a concentration not greater than 70% and a solid particle size not greater than 1.0mm

Product advantages

The circulation volume is larger than that of ordinary mixing tank



Performance characteristics



The diameter of the propeller impeller is increased, the diameter of the circulation cylinder is larger than 1/3 of the inner diameter of the tank, and the number and diameter of holes on the circulation cylinder are increased to increase the circulation volume of the holes.



working principle

Under the rotation of the impeller, the liquid flow in the tank causes turbulence and produces large and small circular motions, so that the slurry and chemicals in the entire tank are evenly mixed, and the mixed suspension is discharged from the overflow port.

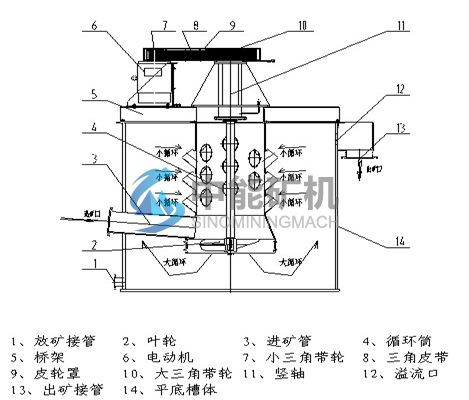

Parts configuration



Technical Parameters
