High Efficiency Mixing Tank

Inquire Now

Description:

Application scope
Slurry with particle size less than 1.0mm, specific gravity less than 4.7, and concentration less than 70% (by mass)

Product advantages

1. Strong stirring, no settling in the tank, low power consumption 2. Long service life of the mixing impeller 3. The effective volume range of the product is 0.58m3-78.5m3



Performance characteristics



1. The impeller has a large diameter and strong stirring ability for slurry and medicine.

2. The impeller has high linear speed and strong mixing ability of slurry and medicine.

3. Downswept impeller enhances the stirring ability of slurry and medicine.

4. The enhancement of stirring ability also enhances the circulation ability of slurry and medicine.

5. There is a flow guide in the tank, and the large negative compression is small in a limited space, which accelerates the suction capacity, so that the downswept impeller has downward operating pressure in the medicine ore circulation, which increases the suction capacity and circulation capacity, and leads to The lower part of the fluid is equipped with a jet body to further enhance the circulation of the medicine ore. The mineral surface is 100% medicated and can achieve higher indicators.



working principle

The rotation of the downswept mixing wheel causes the slurry to circulate vigorously up and down according to the "ω" shaped flow path under the action of the diversion and rectification device.



Parts configuration

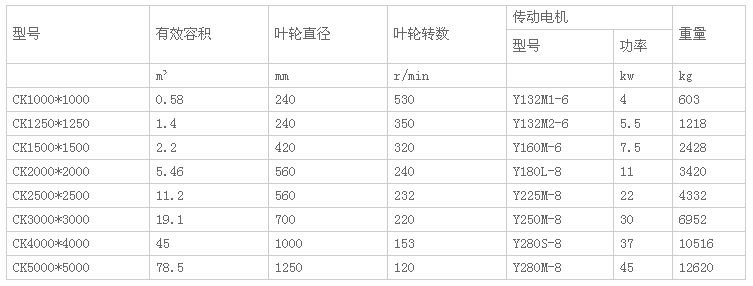

Technical Parameters
