Application range
selection of nonferrous and ferrous metals
Product advantages
1. Shallow groove type, small impeller diameter, low rotation speed, low power consumption 2. Large slurry circulation volume 3. Product production specification range 1m3-160m3 4. Product effective volume range 1m3-160m3
Performance characteristics
1. The slurry circulation volume is large, up to 2.5 times, which is beneficial to the mineralization of ore, medicine and gas.
2. Large air suction capacity, good dispersion effect, moderate stirring degree, good solid particle suspension, no settling in the tank, and no need to discharge ore when parking.
3. The impeller has shallow immersion depth, low peripheral speed, low power consumption, wide range of particle sizes that can be processed, and high mineral processing recovery rate.
working principle
According to the different physical and chemical properties of the mineral surface, useful minerals are separated through stirring and automatic suction to obtain the required minerals.

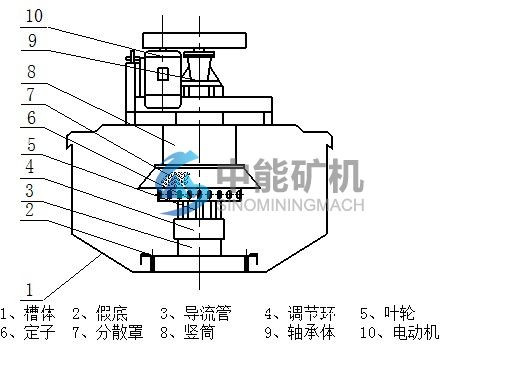

Parts configuration

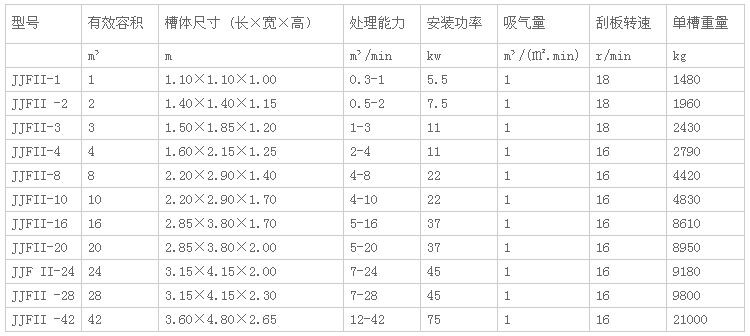

Technical Parameters
