Application range
selection of nonferrous and ferrous metals
Product advantages
1. Dual functions of self-priming air and flotation 2. Adopting a novel backward-inclined double-blade impeller structure, which can realize double circulation of slurry in the tank 3. Product production specification range 1.2m3-50m3 4. Product effective volume range 1.2m3-50m3
Performance characteristics
1. Large inhalation volume and low energy consumption;
2. It has the ability to self-prime air and self-priming slurry, and is configured horizontally. No foam pump is needed for the return of the medium ore;
3. The impeller has low peripheral speed and long service life of wear-prone parts;
4. The gap between the impeller and the cover plate (also called the stator) is large. The increase in the gap between the impeller and the cover plate due to wear has little effect on the suction volume;
5. The slurry in the tank performs double circulation up and down according to a fixed flow pattern, which is conducive to the suspension of coarse-grained minerals.
working principle
The motor drives the main shaft through the V-belt to rotate the lower impeller. The air is sucked into the upper impeller cavity through the suction pipe and the central cylinder, and is mixed with the sucked slurry to form mineralized bubbles, which separates useful minerals and obtains the required of minerals.

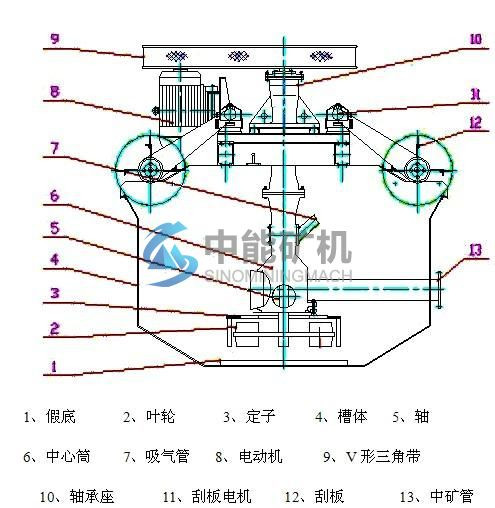

Parts configuration

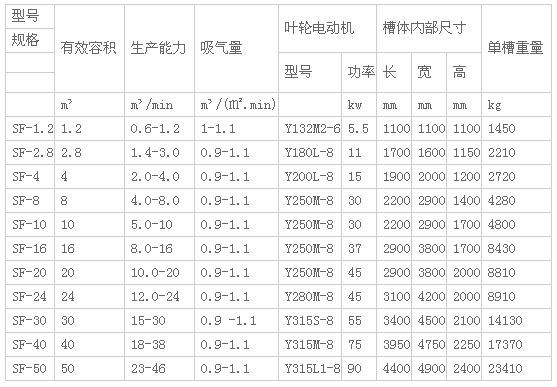

Technical Parameters
